USB camera C1 PRO
€182.71

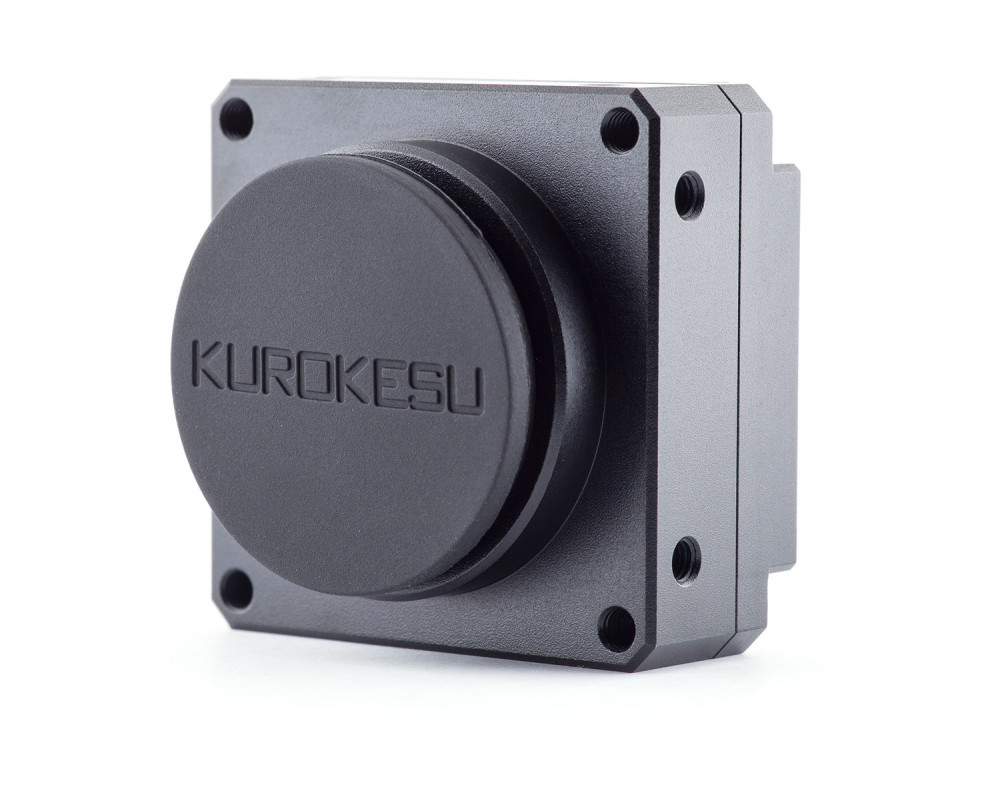

C1 PRO is an industrial USB camera intended for embedded systems and long-term operation where predictable behavior and simple integration are required. It provides Full HD video output using standard UVC interface, allowing use without custom drivers on common operating systems. The camera includes onboard video encoding to reduce USB bandwidth usage and host processing load. A CS-mount lens interface enables the use of a wide range of optics depending on the required field of view and application.
Camera is based on a Sony IMX290 CMOS sensor with a native resolution of 1920x1080 pixels and supports frame rates up to 30fps. Video output formats include H.264, MJPEG, and YUYV. Connection is via USB with UVC compatibility on Windows, Linux, macOS, and Android. Image parameters such as exposure, gain, white balance (2800–9300K), gamma, and backlight compensation can be manually controlled. A 650nm IRcut filter is installed by default. The enclosure measures approximately 40x40x23mm, weighs 53g, uses a CS-mount lens thread, and has an IP40 rating. The specified operating temperature range is –50°C to +85°C, non-condensing.
* Not recommended for new installations. See C2 and C3 family USB cameras.
- High quality industrial 6061-T6 black anodized aluminum case
- 1″-32TPI mount for CS lens

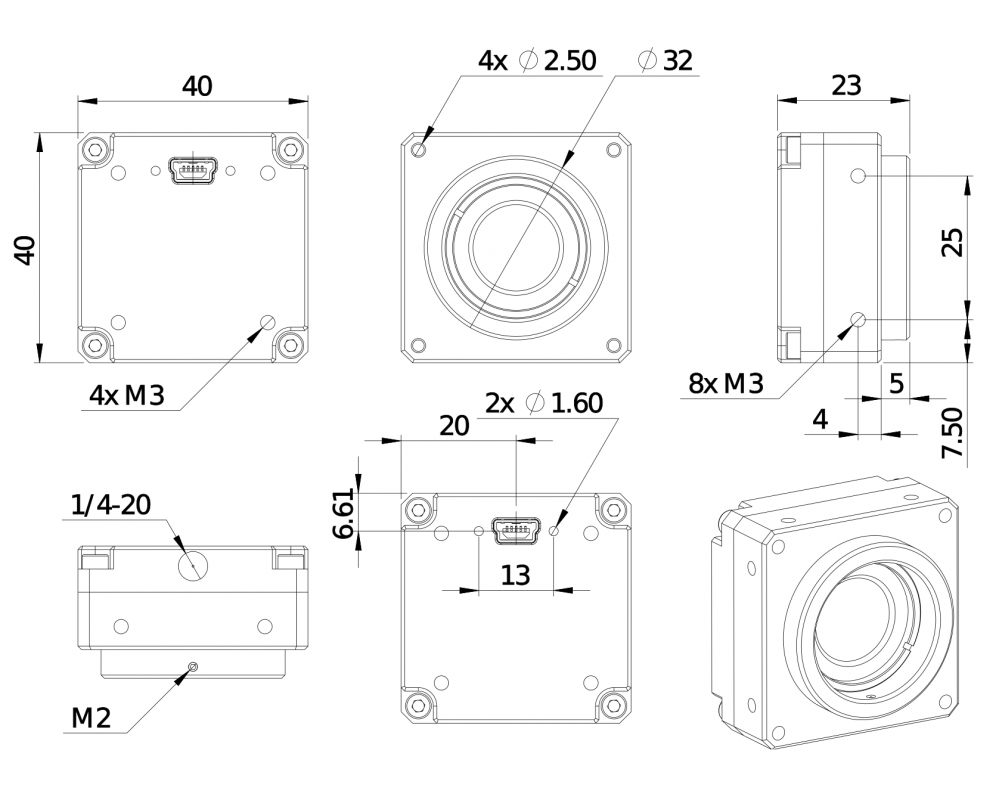

- Multiple mounting options (all side walls and top has M3 tapped holes) for machine vision or robotics

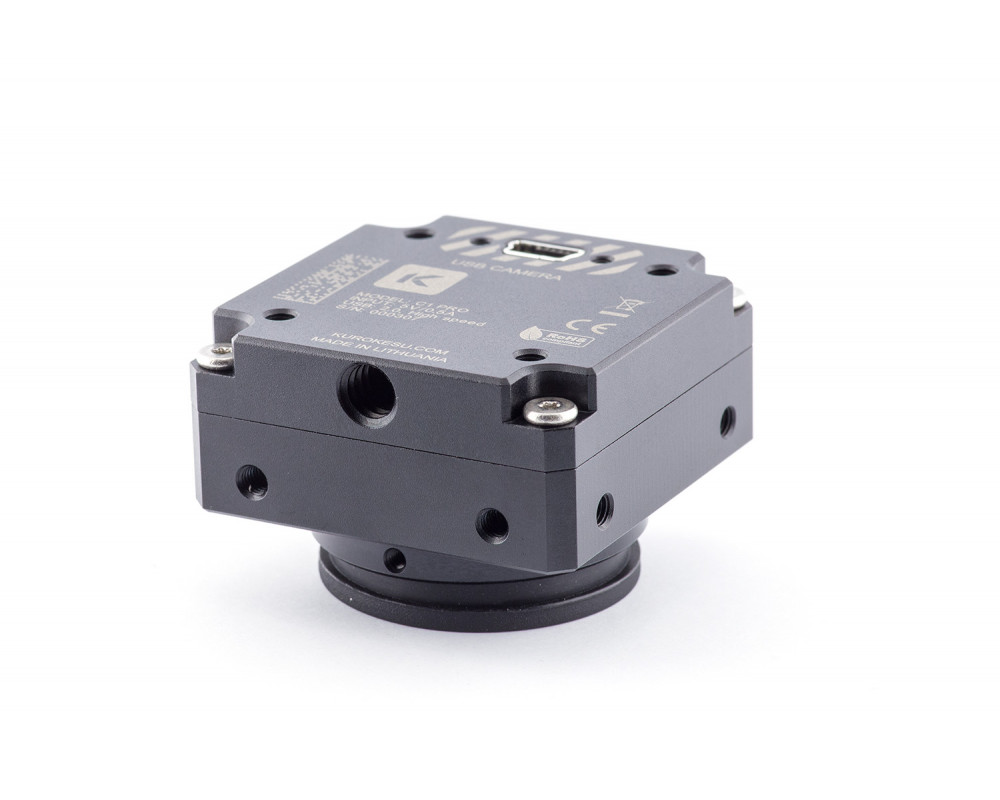

- 1/4-20 UNC thread for tripod mounting
- Format: 1/2.8-inch (6.46mm)
- Sensor: Sony IMX290 YUY2 / MJPEG / h.264 compression
- 1920x1080 @ 30fps UVC compatible
- Sensor pixel size: 2.9μm x 2.9μm
- Sensor dynamic range: 66db
- SNR max: 40.5db
- Operation temperature range: -45°C...+85°C
- USB 2.0
- 3D model can be found at: https://github.com/Kurokesu/3d_models
- Interchangeable filters (Low pass 650nm installed by default)
- Non cropped sensor operation in all resolutions
- Each camera has unique serial number
- RoHS, REACH, CE certified
- Normally camera is built with 380-650nm filter installed.
- Optionally you can order installed >850nm IR filter or filter can be removed.
- You can chose this option in drop down menu. Online lens view angle calculator
- Lens is not included
| Camera interface: | USB MINI |
|---|---|
| Camera kind: | Boxed |
| Chroma: | RGB |
| Image sensor: | IMX290 |
| Lens mount: | CS |
| Sensor size: | 1/2.8" |
| Shutter: | Rolling shutter |
| Frame rate: | 30 fps |
| Resolution: | 2 MP |
