20cm slim CSI2 FFC cable
€20.57

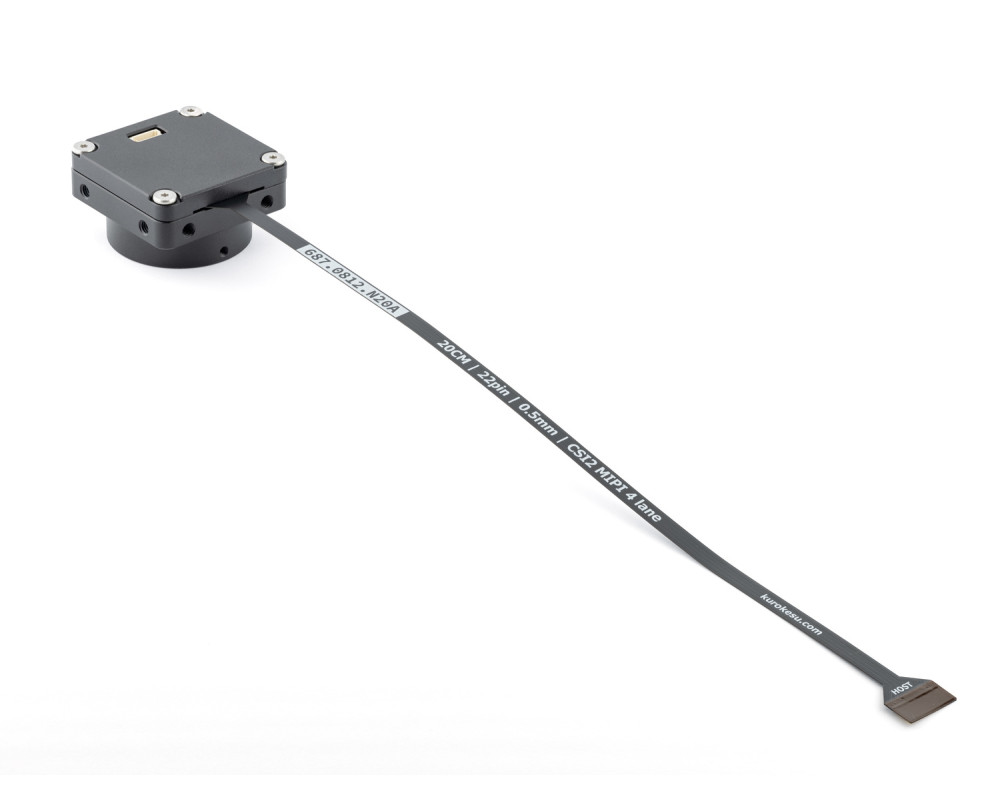

The Slim FPC cable is a compact, impedance-controlled flexible printed circuit designed for MIPI CSI-2 camera interfaces. With a 4 mm width, it fits well in space-constrained assemblies while maintaining reliable signal transmission. Its four-layer structure includes dedicated ground planes that reduce crosstalk and preserve signal integrity across four differential data lanes.

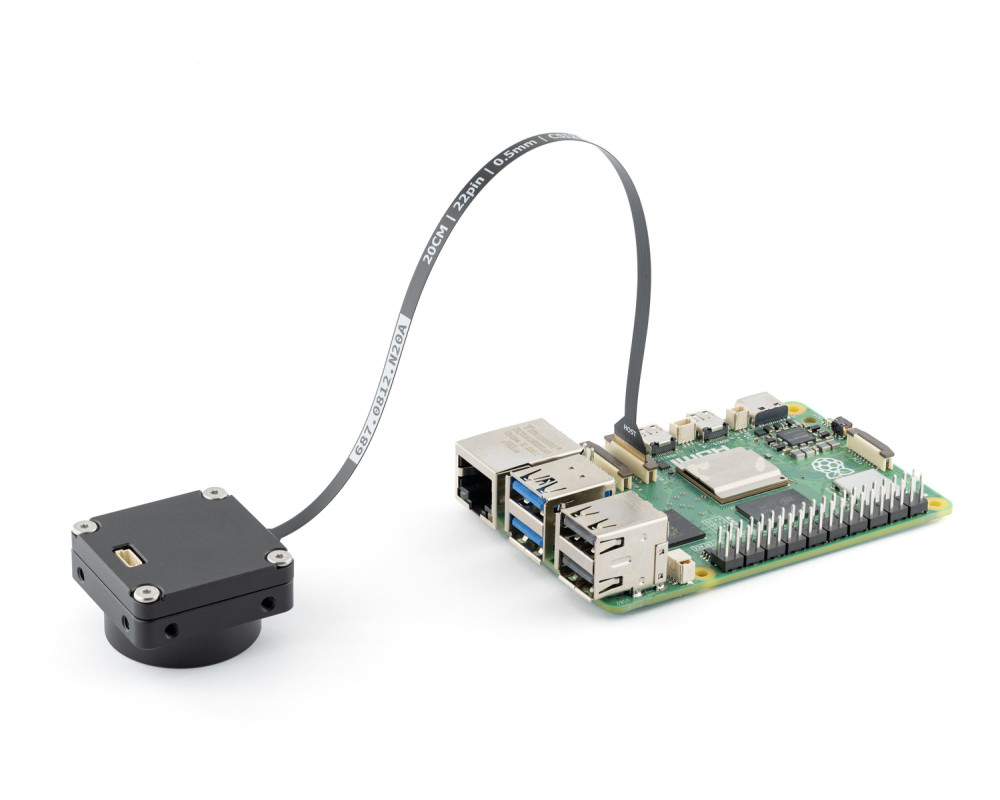

Designed for 22-pin, 0.5mm pitch CSI-2 connectors, the Slim FPC cable ensures stable connectivity between camera modules and processing boards in applications where installation space is limited. It performs well in embedded vision systems, robotic assemblies, inspection equipment, and other setups requiring flexible and lightweight interconnects.
Available in several lengths, now including 20cm, 30cm and 40cm versions, this cable offers a balanced combination of flexibility, compact design, and consistent electrical performance, making it suitable for high-speed imaging and other demanding embedded applications.
- 4-layer construction with controlled impedance
- Dedicated ground planes for reduced crosstalk

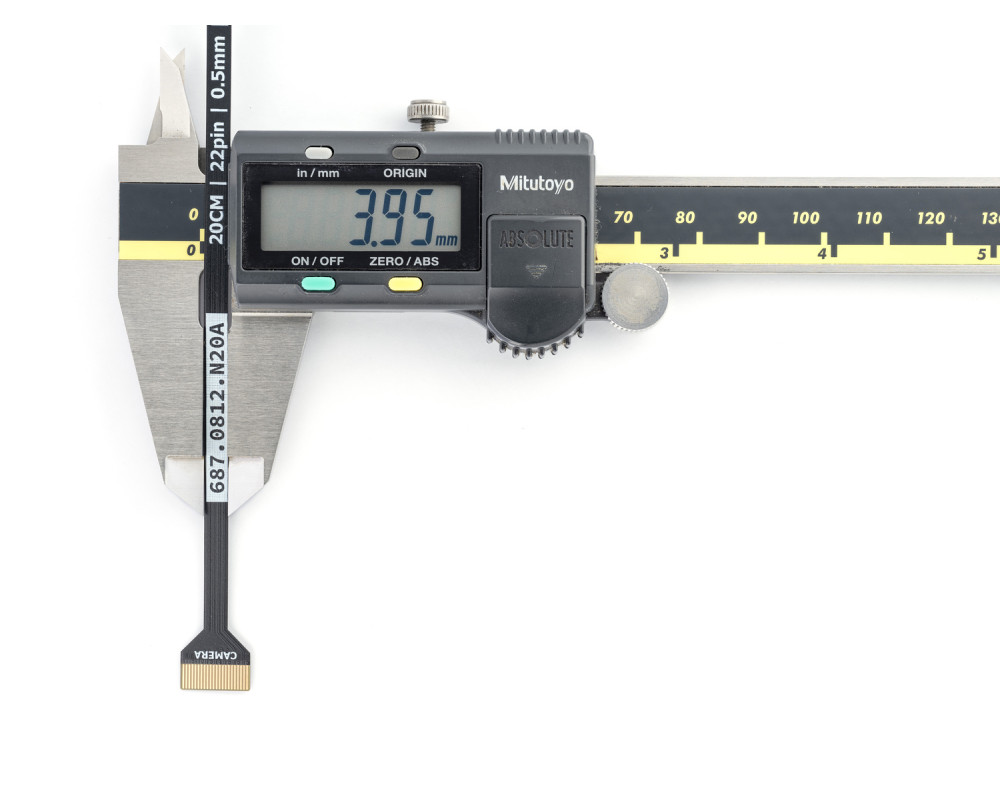

- Width after fan-out: 4 mm
- Length options: 20cm, 30cm, 40cm

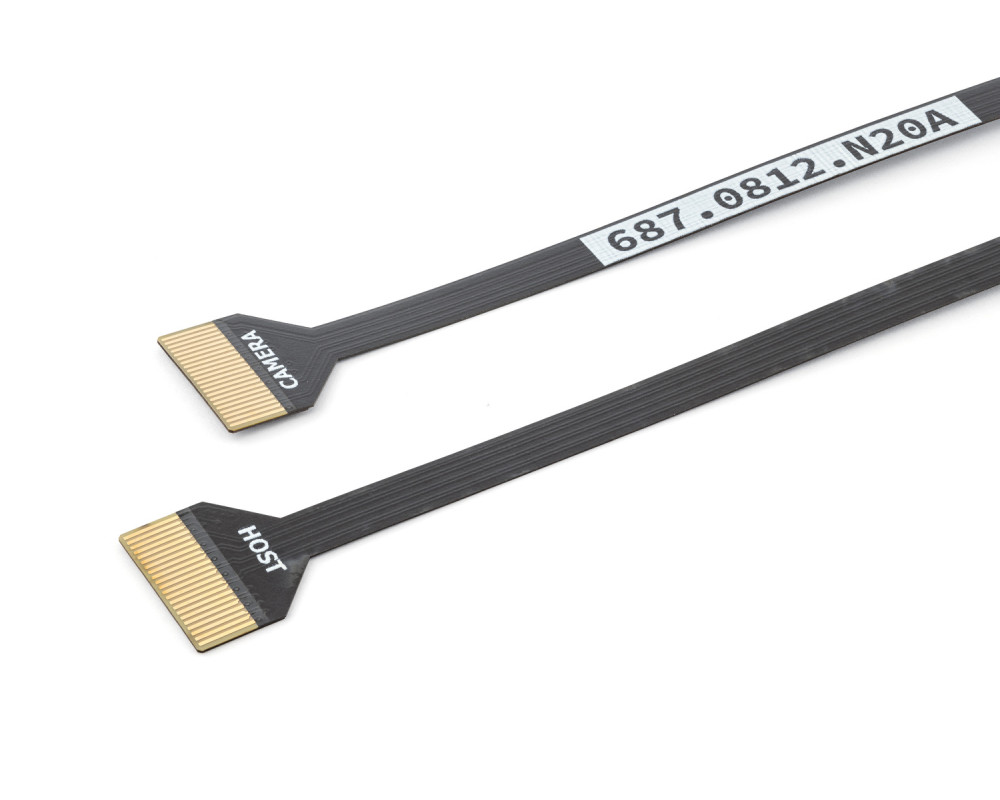

- Compatible with 22-pin / 0.5 mm pitch CSI-2 connectors
- Flexible and easy routing through constrained spaces
- Suitable for robotic vision systems, wearable optics, inspection tools, and any embedded implementation where space is limited
| Parameter | Value |
| Number of lanes | 4 differential pairs |
| Connector pitch | 0.5 mm (22-pin format) |
| Cable width (post fan-out) | 4mm |
| Available lengths | 20,30,40cm |
| Construction | 4 conductive layers + ground planes |
| Crosstalk suppression | Enhanced by ground layers |
| Impedance control | Yes (matched to CSI-2 interface) |
This Slim FPC cable is ideal when minimal cross section and flexible routing are required. Typical deployment scenarios include:
- Vision modules in tight mechanical assemblies
- Cameras in wearable or curved form factors
- Inspection systems inside narrow housings
- Embedded or mobile platforms where routing space is constrained
Its narrow width and controlled electrical performance make it a reliable choice for applications demanding both space efficiency and signal fidelity.
| HS CODE: | 8544 49 93 20 |
|---|---|
| Country Of Origin: | China |
| ECCN: | EAR99 |
