16/03/2025
L078-2.78-M12
2.78mm M12 wide angle low distortion fixed focus lens

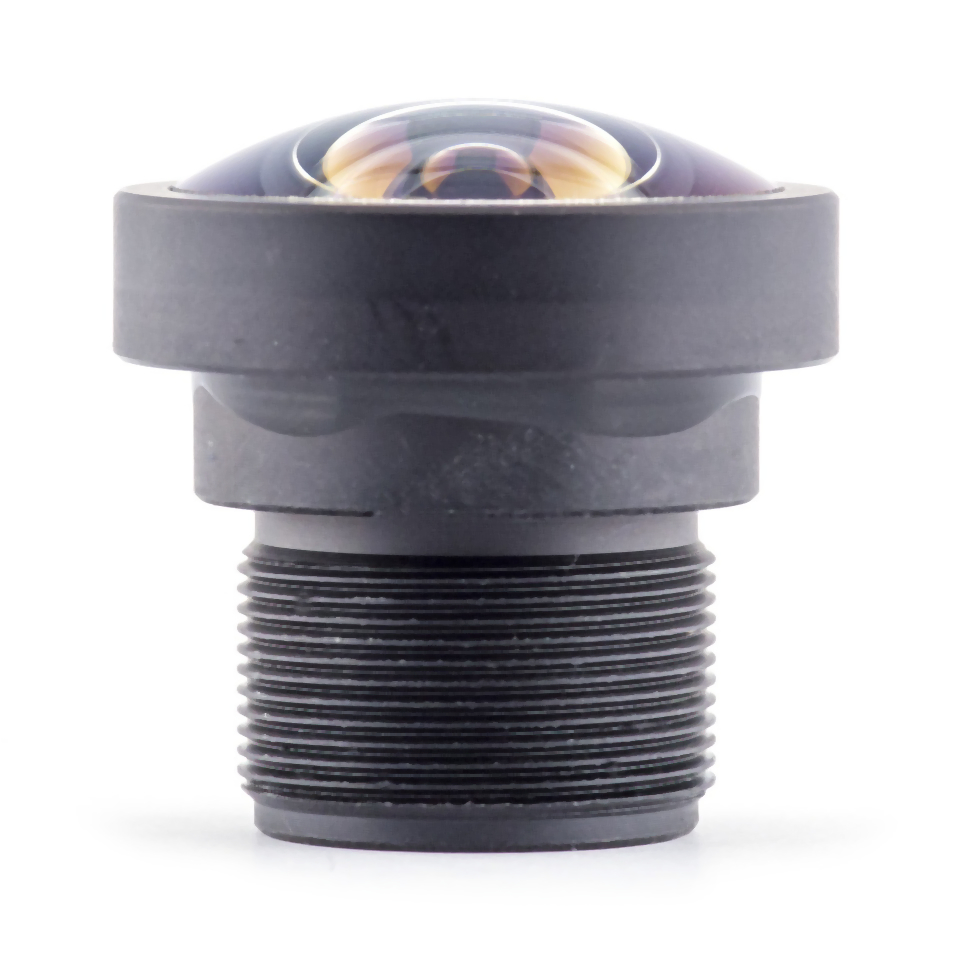

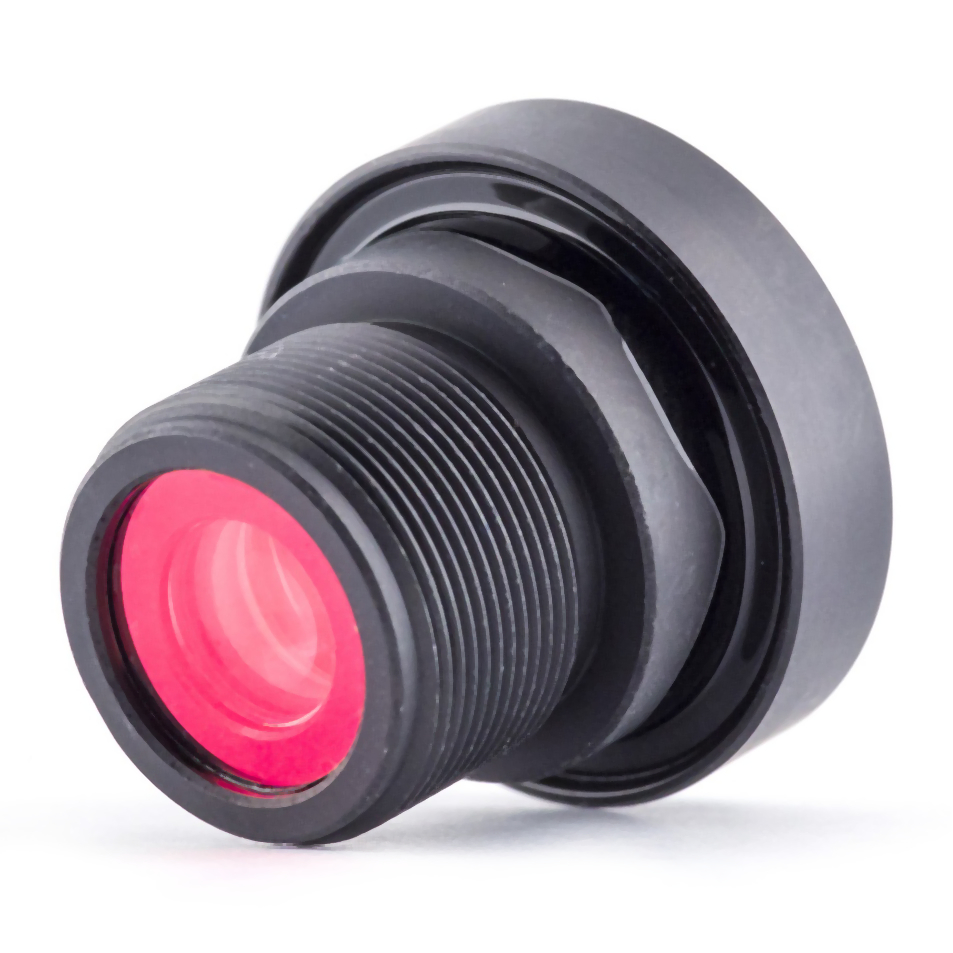

Pictures
Specifications
| Focal Length (mm) | 2.78 |
| Aperture | f/2.2 |
| Sensor resolution (MP) | 12 |
| Image size (mm) |
10.16
|
| Image size (in) | 1/2.5" |
| View angles | D=112°, H=100°, V=80° |
| Mount Type | M12 x 0.5-6g |
| Minimum Object Distance (m) | >=0.2 |
| Distortion | <-3% |
| CRA | <19° |
| Flange Focal Distance (mm) | 3.74 |
| Dimensions | D=18mm, L=18.36mm |
| Net Weight (g) | 8 |

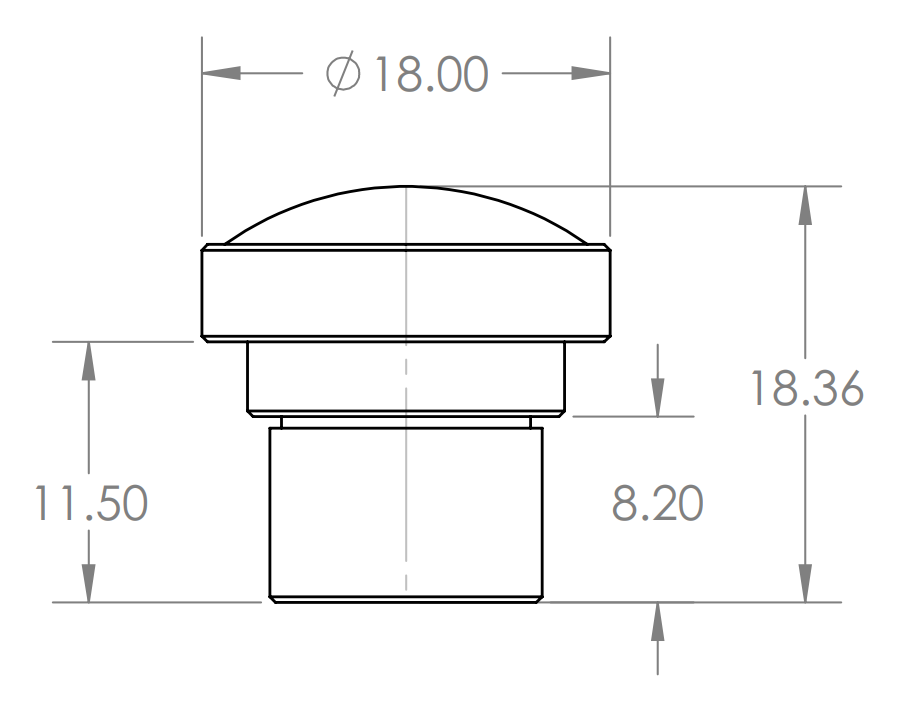

Dimensions

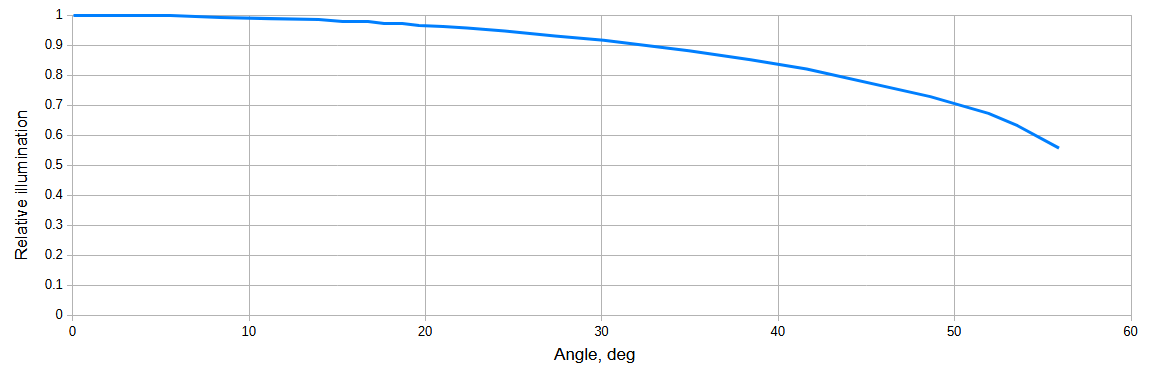

Relative illumination

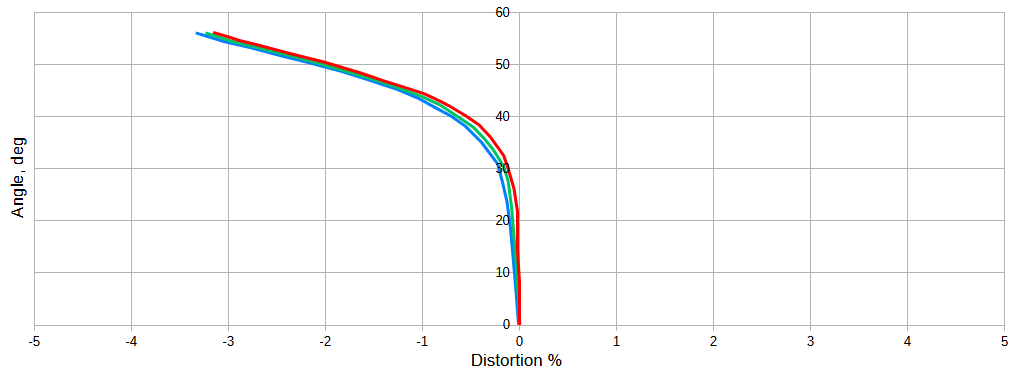

Distortion

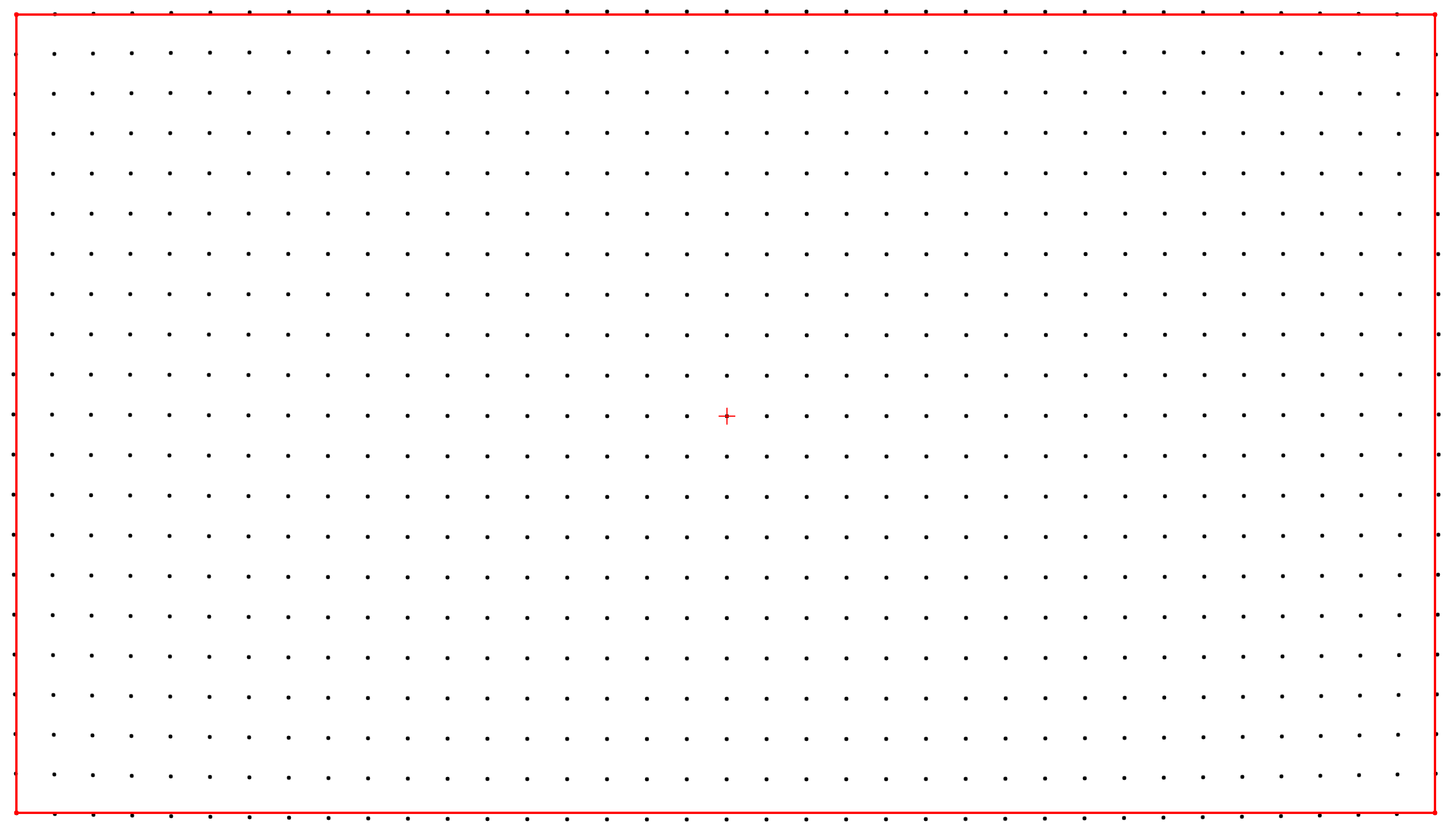

Distortion map
